Electrical Infrastructure In Boiler Rooms: A Mechanical Contractor’s Guide
Key Highlights
- Proper load calculation and equipment sizing are essential to prevent overloads and ensure system reliability in boiler rooms
- Separating high-voltage and low-voltage wiring reduces electromagnetic interference and enhances safety
- Implementing safety measures like sensors, breakers, and lockout/tagout procedures protects personnel and equipment from hazards
- Close coordination between electrical and mechanical contractors ensures seamless system integration and efficient operation

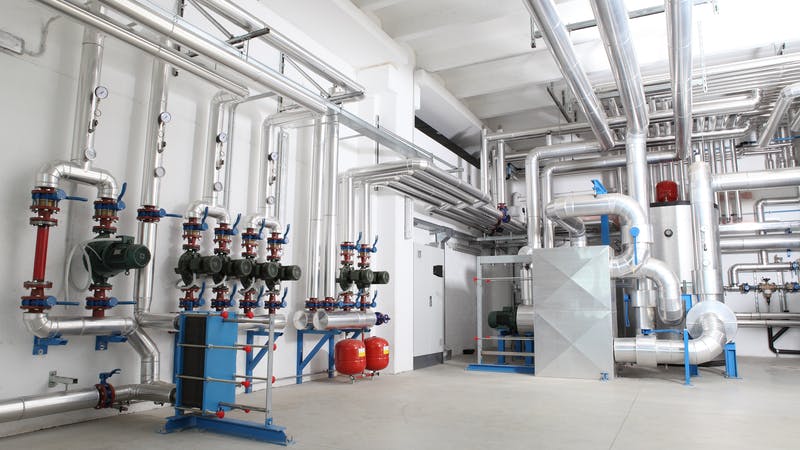

Boiler rooms serve as hubs that house electrical and mechanical systems, requiring careful infrastructure design and planning. The right setup ensures that these systems are able to operate safely and reliably to reduce the risk of fires and other hazards while also minimizing downtime.
For mechanical contractors, that means understanding power requirements and electrical demands for these rooms. Ensuring compliance and following safety protocols at every step is also important. The following guide can help contractors seamlessly integrate mechanical and electrical systems in boiler rooms in a safe and efficient manner.
Electrical Demands for Boiler Rooms
These building areas typically house multiple systems and equipment with varying electrical needs, such as:
-
Emergency shutdown systems
-
Motors
-
Pumps
-
Boiler controls
-
Boiler monitoring equipment
Planning for Load Requirements
Calculating the electrical load a boiler room needs is a key part of planning. That involves considering boiler size, fuel type and other factors that affect power capacity, such as automation levels.
Power Requirements for Different Types of Equipment
Pumps and Motors
Boiler room pumps and motors tend to have higher start-up currents and the biggest electrical loads. Conductor and circuit breaker sizing needs to account for this in order to prevent hazardous surges and overloads.
Installing a backup system and ensuring the correct sizing helps prevent these interruptions. Variable frequency drives and soft starters help limit inrush current in larger pumps, improving safety and efficiency.
Control Systems
Boiler control panels and other control systems typically run on lower voltage. But they need stable voltage in order to continue operating. Even slight fluctuations in voltage can cause boilers to shut down.
An interrupted power supply (UPS) offers backup power while regulating voltage to reduce the risk of fluctuations and disruptions. Installing surge protection and providing power on dedicated circuits also help protect this equipment.
Ancillary Equipment
Water treatment systems, ventilation fans and other ancillary devices contribute to a boiler room’s total electrical load. Factoring these into current and future planning helps ensure that all equipment in this area can operate efficiently.
Wiring Practices and Layout Considerations
Circuit Separation
Isolating high-voltage power wiring from low-voltage wiring helps lower the risk of electromagnetic interference. Using separate raceways or conduits helps accomplish this.
Cable Sizing and Insulation
Sizing conductors with peak and continuous electrical loads in mind also involves factoring in adjustments for higher ambient temperatures that can occur in boiler rooms. Using heat-resistant materials for insulation and conduits results in better durability and reduces the risk of overheating.
Routing and Accessibility
Wires in boiler rooms should be placed far from extreme heat sources and other potentially hazardous conditions, such as moisture or vibrations. Conduits can keep cables safe and secure, while also ensuring accessibility. Other components, such as electrical panels and junction boxes, should provide safe access for maintenance and repairs.
Labeling and Documentation
Clearly labeling circuits at both ends and storing up-to-date schematics on-site helps simplify electrical troubleshooting, lowering the risk of potentially costly or hazardous errors during repairs or equipment upgrades.
Compliance and Testing
Electrical infrastructure for boiler rooms needs to meet local code requirements and National Electrical Code (NEC) standards, along with National Fire Protection Association (NFPA) and Occupational Safety and Health Administration (OSHA) requirements.
Conducting pre-handover testing (for example, continuity and insulation resistance) helps verify that systems are working safely and reliably.
Safety Protocols
Hazard Awareness
Boiler rooms create difficult conditions for doing electrical work. Mechanical contractors should be aware of and take precautions against potential hazards, such as moisture and heat, in these confined areas.
Essential Safety Measures
Providing safe electrical functioning for boiler rooms involves several safety measures, such as:
-
Sensors and breakers for overcurrent and fire protection
-
GFCI protection and grounding
-
Lockout/tagout procedures for servicing electrical equipment
Integrating Electrical and Mechanical Systems
Coordinating Between Trades
Mechanical contractors and electrical professionals work closely together to set up boiler rooms. This coordination throughout the process helps ensure efficiency and safety, from communicating electrical requirements clearly to contacting industrial electrical equipment suppliers for the right systems.
Synchronizing and Automating
Automation is a key part of modern boiler rooms, requiring electrical systems to support this technology. That involves making sure the right sequencing takes place to reduce the risk of shutdowns, such as ensuring pumps are activated before ventilation fans.
Installing Centralized Control Panels
Having centralized panels for electrical and mechanical controls helps make system operation easier while also simplifying wiring. Including space for panel upgrades allows these expansions to take place with minimal disruptions.
Common Pitfalls and How to Avoid Them
Knowing the kinds of mistakes that can occur when planning and setting up electrical infrastructure helps prevent them from occurring. Some of these include:
-
Undersized equipment: Panels, wiring and other undersized components raise the risk of overheating and shorter equipment lifespan. Calculating accurate electrical loads and planning for future expansion helps prevent these issues.
-
Poor cable management: Leaving cables and wires disorganized results in hazards, such as tripping hazards and maintenance difficulties. Using conduits or trays to house wiring helps reduce these risks.
-
Lack of emergency power: Boiler room shutdowns can leave buildings without heat and ventilation. Emergency power solutions, such as generators or battery backups, help keep systems up and running.
Ensuring Safe Boiler Room Operations With the Right Electrical Infrastructure
Having the appropriate systems in place helps ensure safe, continuous performance. Careful wiring, code compliance, load planning—these are all part of the process involved in designing and planning electrical infrastructure for boiler rooms.
